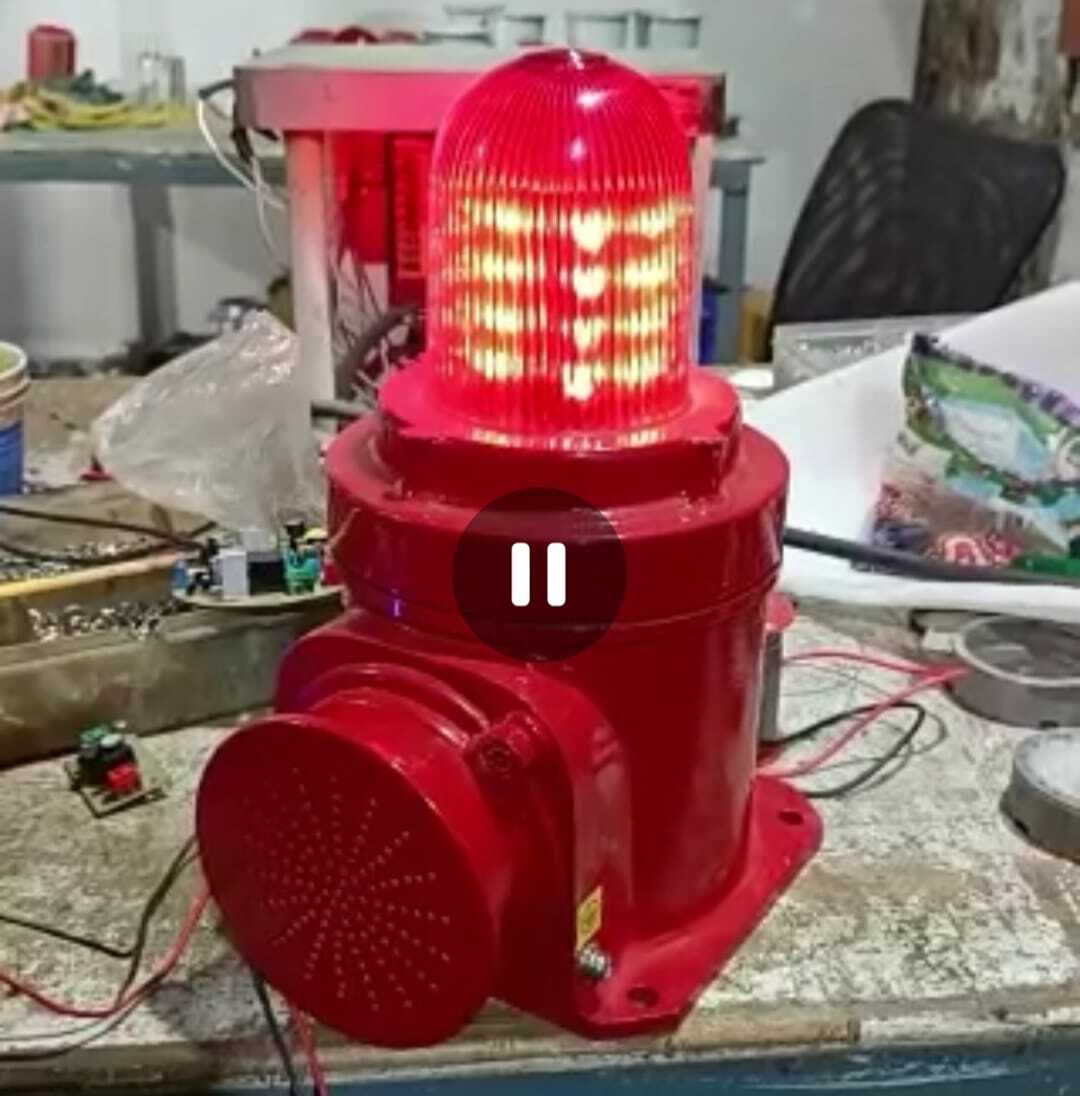

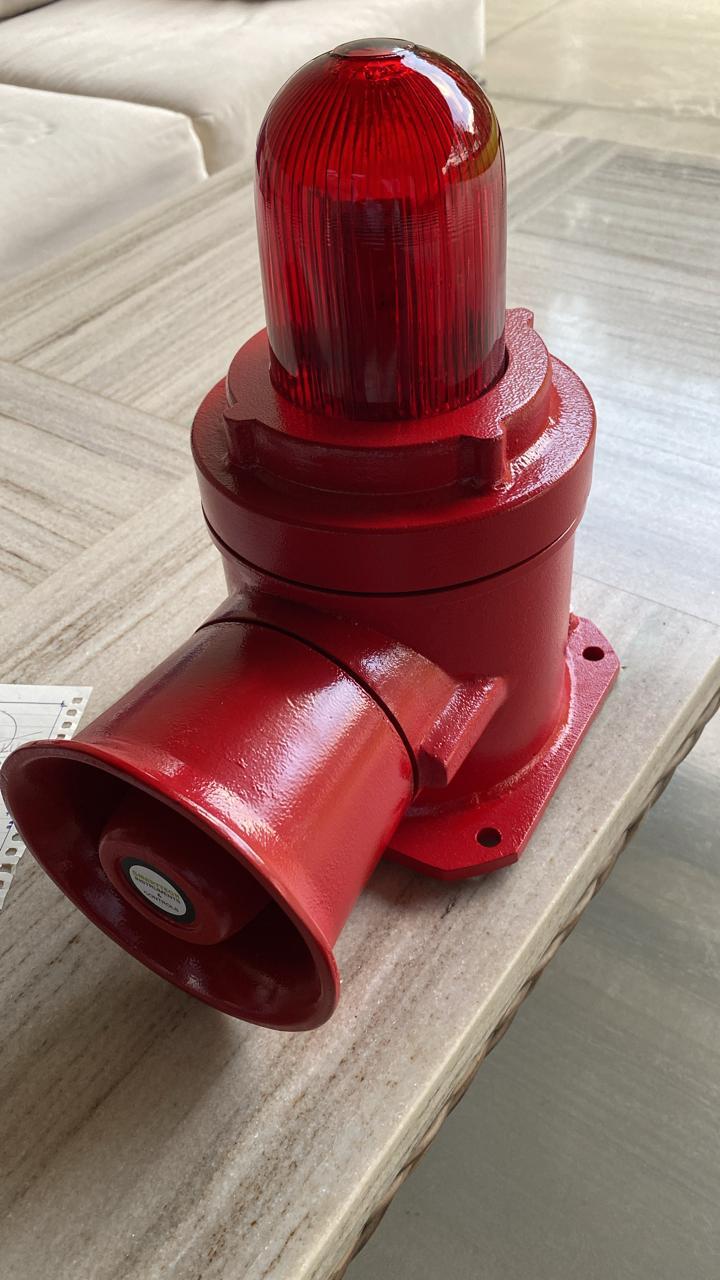

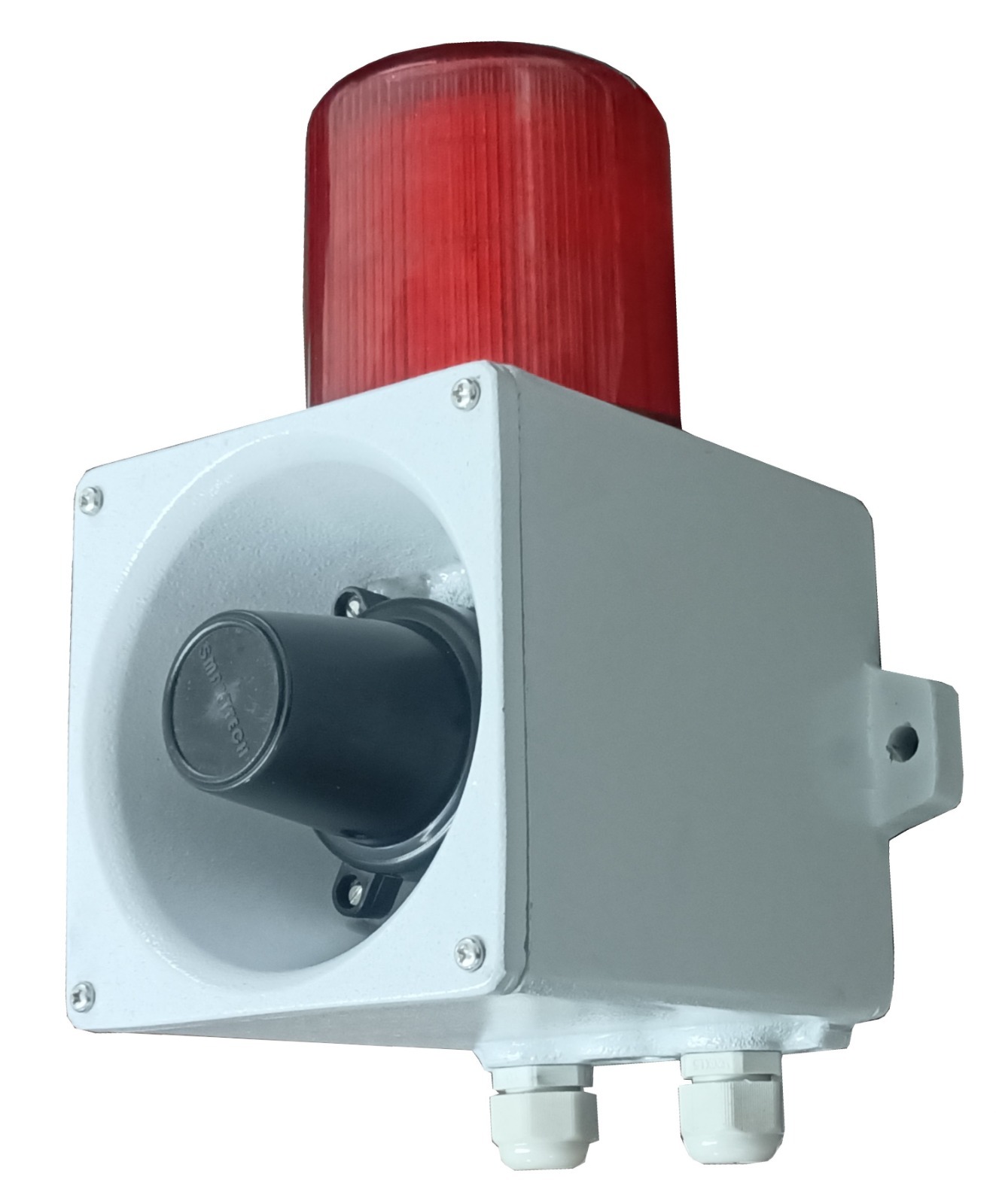

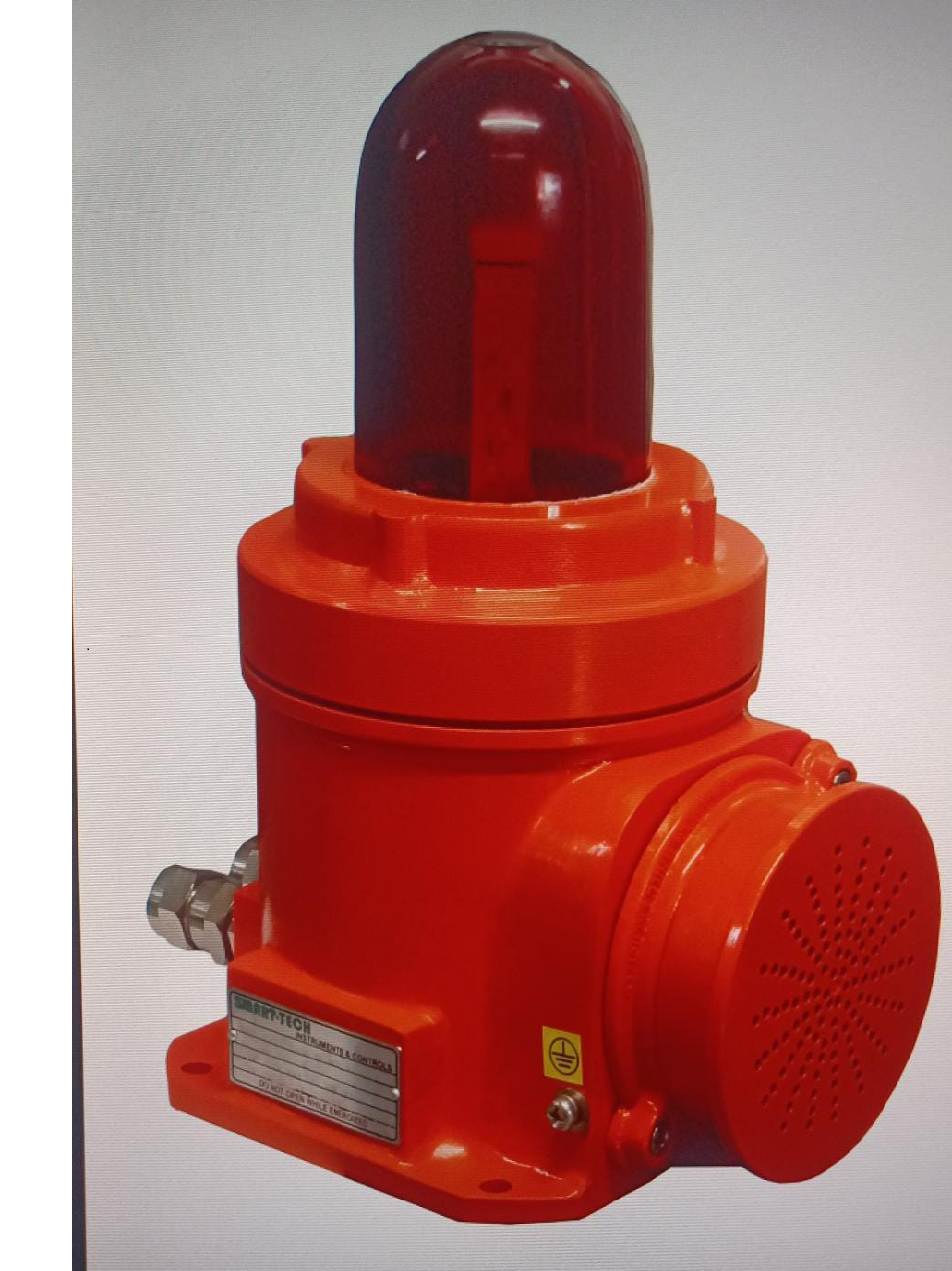

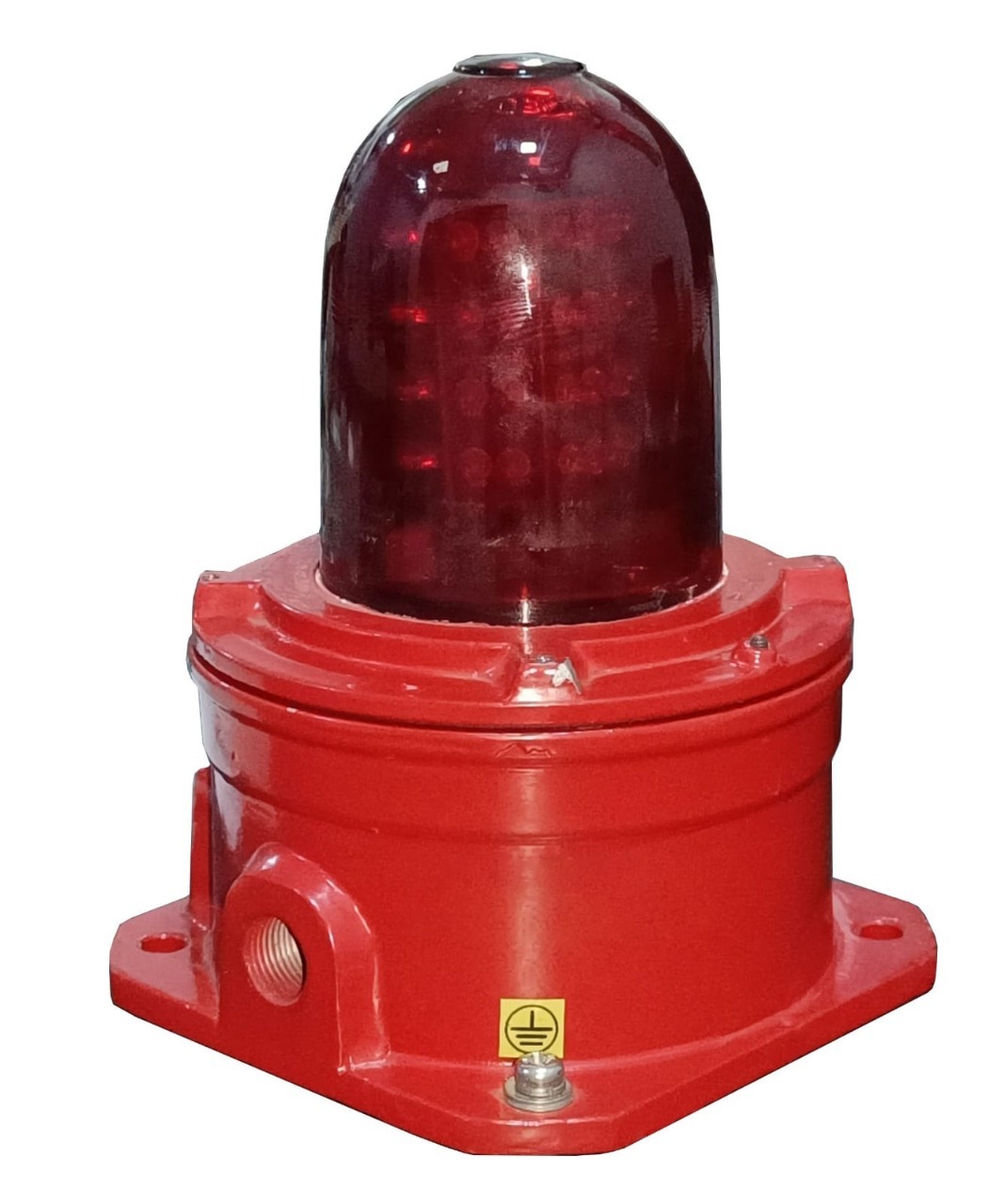

FLP HOOTER CUM FLASHER

Product Description

OPERATING VOLTAGE : 230 volt AC , IP-66 , Body Structure CAST ALUMINIUM ALLOYS , HOOTER CUM FLASHER .

Product Description

Flameproof Alarm Horn Sounder Dual Tone with flashing beacons

Model: STFHL100-B

Housing

ï As per IS/IEC 60079-1:2007,IS/IEC 60079-0:2004

ï Degree of protection: IP66 as per IEC 60529:2001

ï Temperature Class: T6

ï Enclosure: Die cast Aluminium

ï Certification Type NO: STJ30030

ï Electrical Rating: 24V DC/ 110-230V AC

ï Sound output: SPL at 1K Hz 110dB/10W/1m

ï Input Power: 10W RMS/ 13W Impedance: 8 Ohms.

ï Frequency Response: 300-5000 Hz

Flashing light

ï Navigational Blinking Illumination light

ï Power Supply: 24V DC/ 110-230V AC

ï LED: 48 Nos. High intense colored LED used in the circuit.

ï Light Intensity: 600 to 630nM

ï Viewing Angle: 360 Deg.

ï Operating temperature range: Up to 70 Deg. C

ï Sealed water-proof unit conforming to IP66 standards

ï Flameproof Casing with sealed toughened Type A Glass Red/ Blue/Yellow/ Green Colour (Based on LED Color)

Earthing:1 no inside & 2 nos. External

Cable Entry: 2 nos size 3/4ï ET OR M20 X 1.5P OR ï NPT

Mounting: Base Mount

Colour ï PO Red Epoxy powder coating + paint
